ABB092

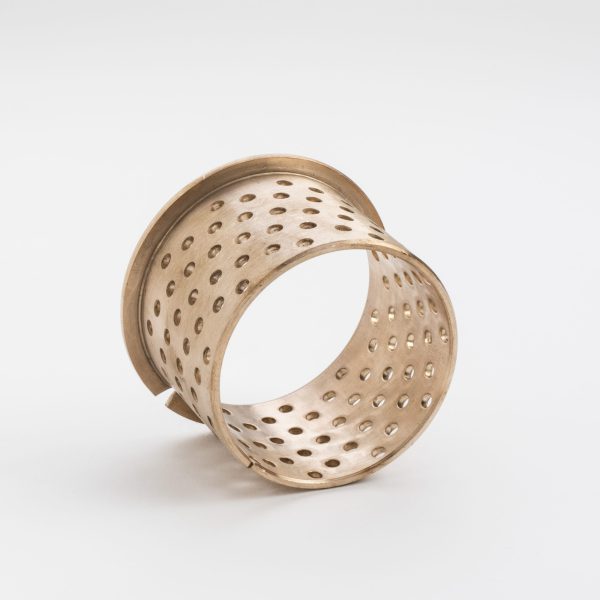

Rolled flange bearings for extra heavy loads.

Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble

Areas of use e.g.
Forest- and constructional machinery, agricultural
machinery, cranes, forklifts, hoisting equipment
etc.

Shapes & forms Plain
cylindrical bearings, flanged bearings,
thrustwashers, slidingplates.





Description

ABB092 is made from high grade alloyed, cold rolled, phosphorous tin bronze.
The slide bearings are especially designed to withstand heavy loads and to be shock-resistant.
The entire bearing surface consists of “punched-through-holes” that provides improved
lubricating properties and fewer maintenance periods. ABB092 is intended for radial,
oscillating and axial movements and are especially suited for extra high loads. ABB092 take over where other types of bearings break or fail.

Assembly
The bearings are intended to be pressed into a housing with H7 tolerance.
The inner diameter of the slide bearing will then hold tolerance H9.

Axle/shaft – Bearing play
To the H9 tolerance of the slide bearing we recommend shafts with tolerance e7 or f7. If h-shafts are used, the bearing inner diameter should be machined up to tolerance F7.

Lubrication
Lubrication should be done through the shafts or radial through the housings. All common
grease-types or oil can be used.

Special manufacturing
We can offer special sizes, shapes, forms or lengths upon request.
Please contact us for a quotation or more information.

Generated by wpDataTables

abb092

Generated by wpDataTables

Additional information

CSB092, WB802, WB902, WF-WB802
